Our crushers are built on the basis of unique technical specifications and usability that make the difference!

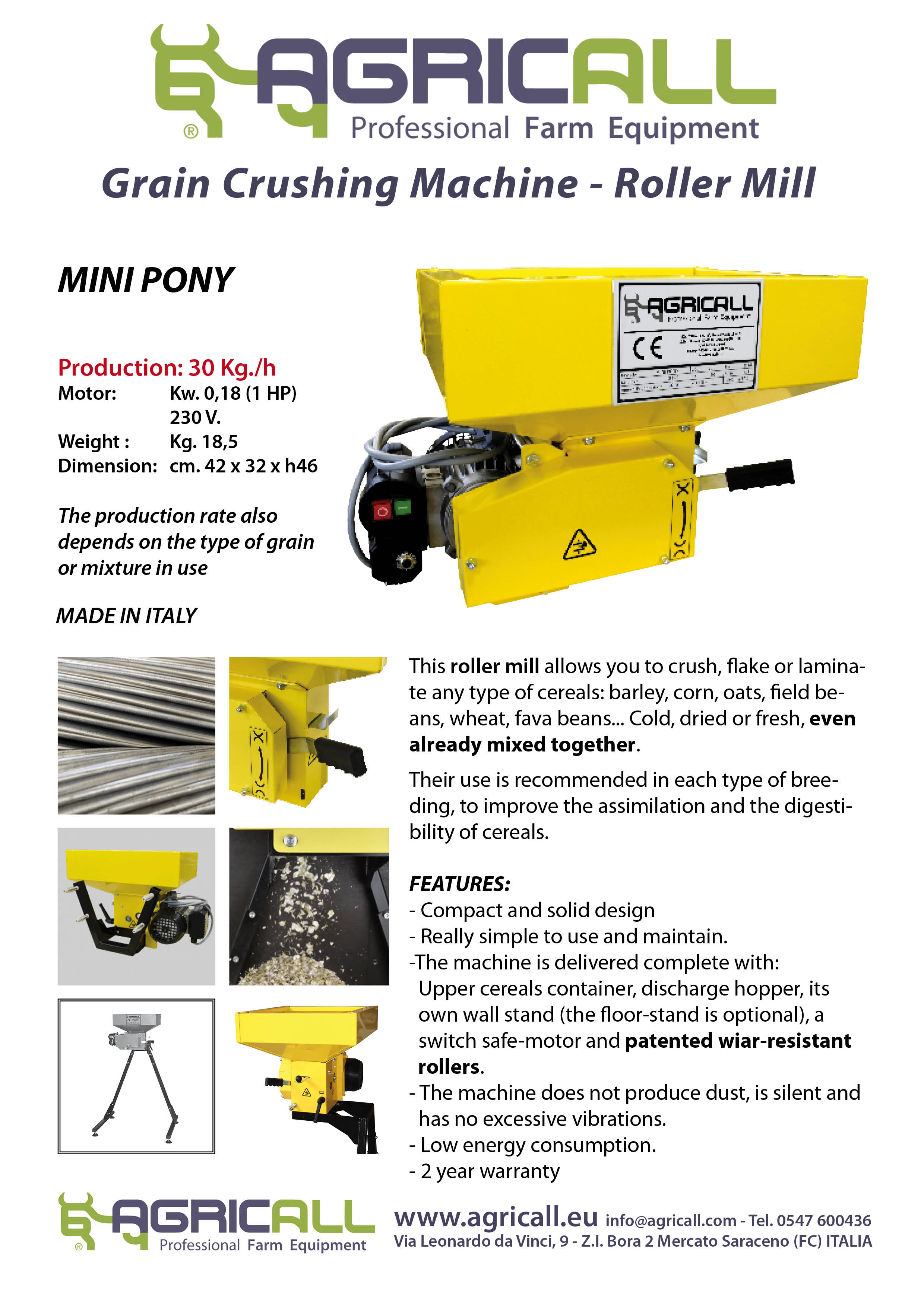

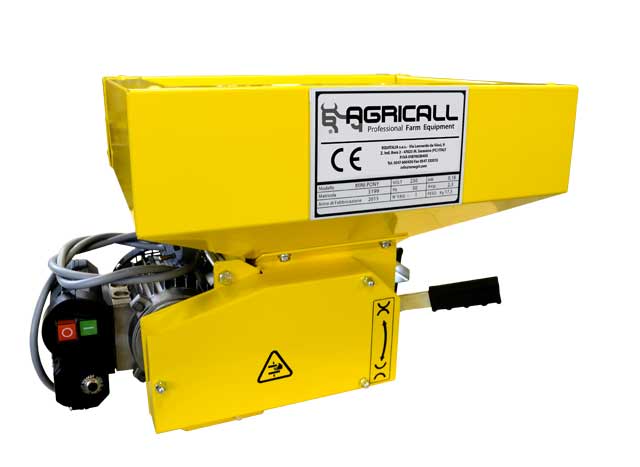

"Mini Pony" crusher
Low energy consumption, 230 V single-phase model. Production of 30 kg per hour which can increase or decrease depending on the adjustment of the crushed material. Cereals: barley, triticale, wheat, oilseeds, sorghum, etc. The machine crushes even more mixed cereals. It is equipped with a standard wall stand and it is also available with a floor stand.
Production | 30,00 Kg per hour |
---|---|
Motor | Kw 0,18 (0,25 HP) 230V |
Weight | Kg. 18,50 |
Machine dimensions | cm. 42 x 32 x h 36 |
Overall dimensions | cm. 42 x 32 x h 36 |
Technical sheet |

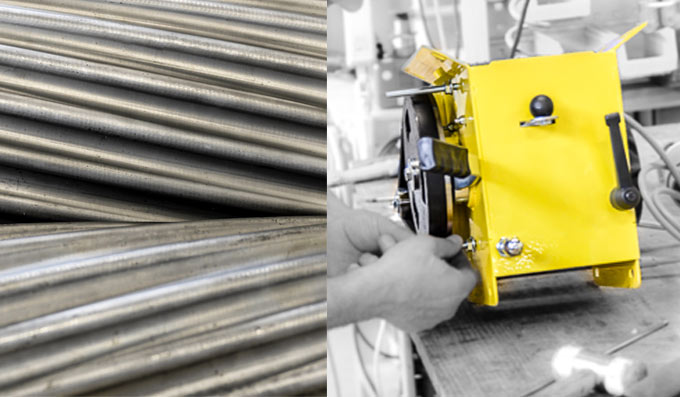

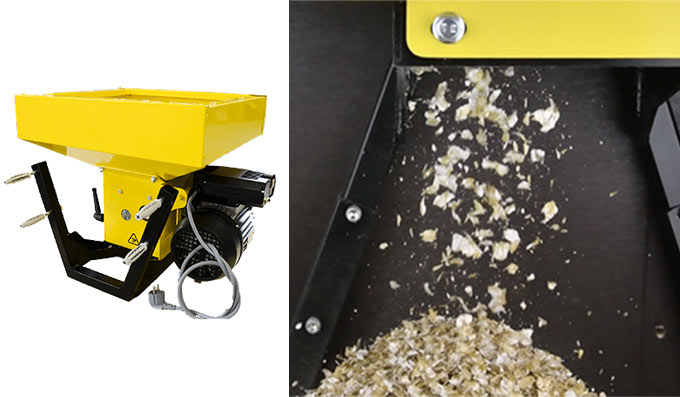

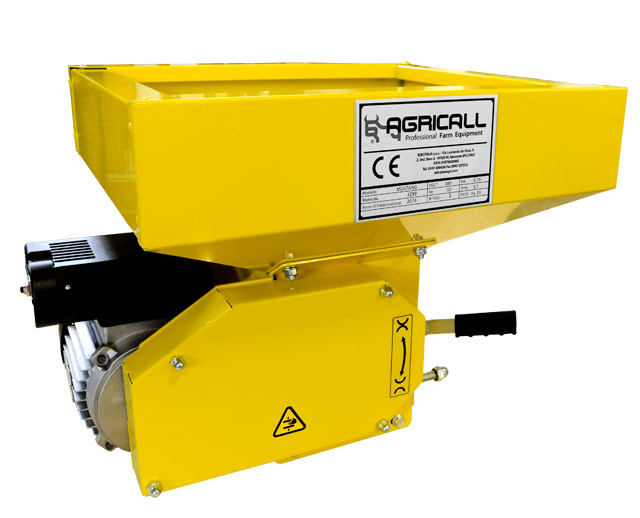

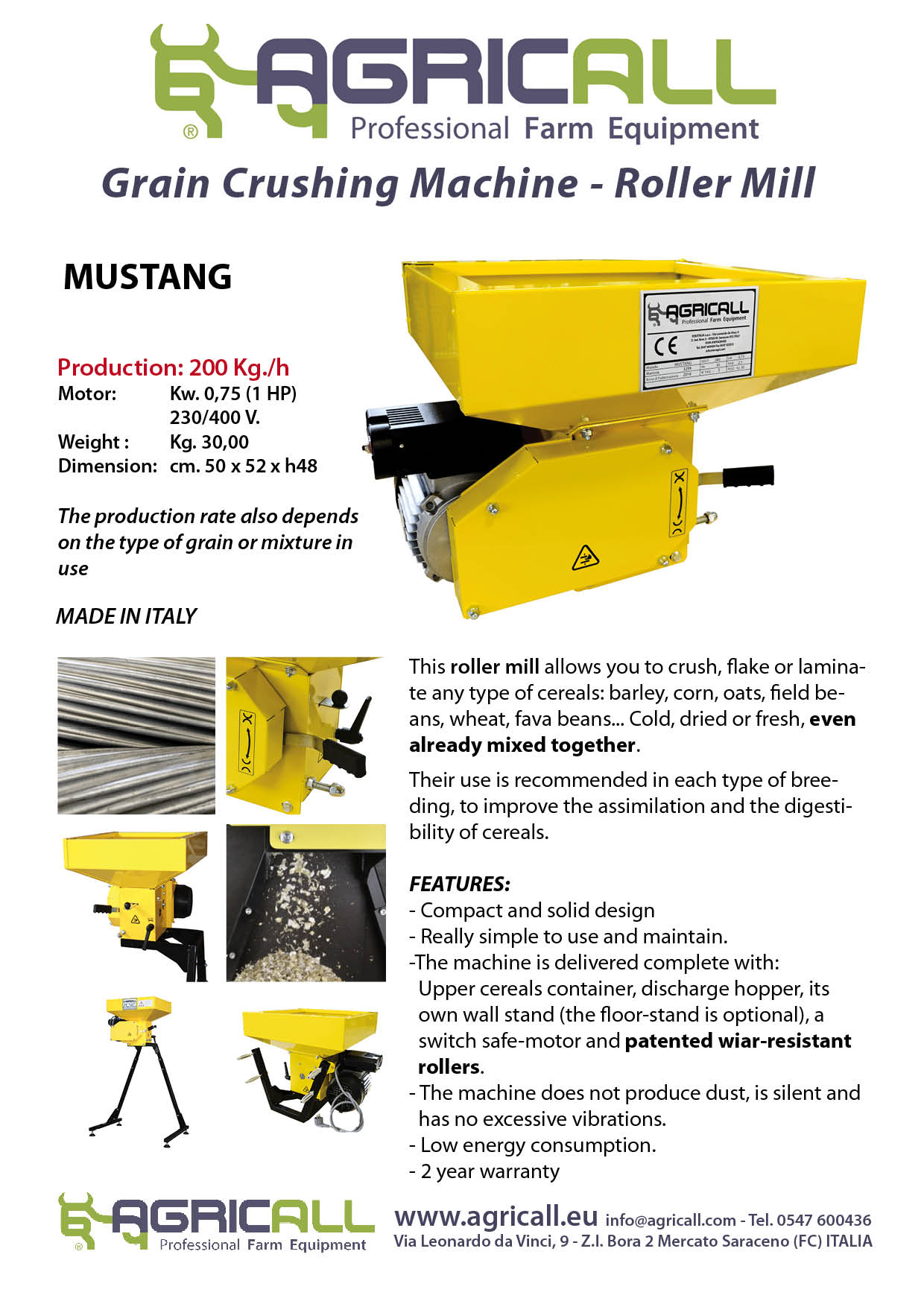

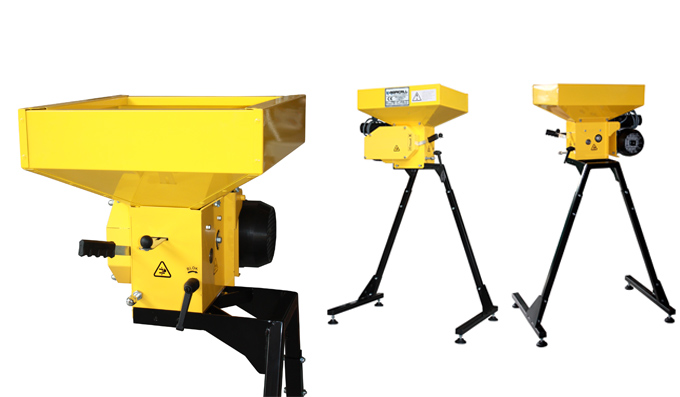

"Mustang" crusher
Low energy consumption, available in 2 versions: 230 V single-phase and 400 V three-phase. Production of 200 kg per hour which can increase or decrease depending on the adjustment of the crushed material. Cereals: corn, barley, triticale, field bean, wheat, soy, oilseeds, sorghum, olive pits, etc. It crushes even more mixed cereals. It is equipped with a standard wall stand and it is also available with a floor stand. The three-phase model is equipped with an IE2 energy class motor and is protected by a standard ABB motor protection.
Production | 200,00 Kg. per hour |
---|---|
Motor | kw 0,75 (1 HP) 230/380V |
Weight | Kg. 30 |
Machine dimensions | cm. 51 x 46 x h 42 |
Overall dimensions | cm. 51 x 46 x h 42 |

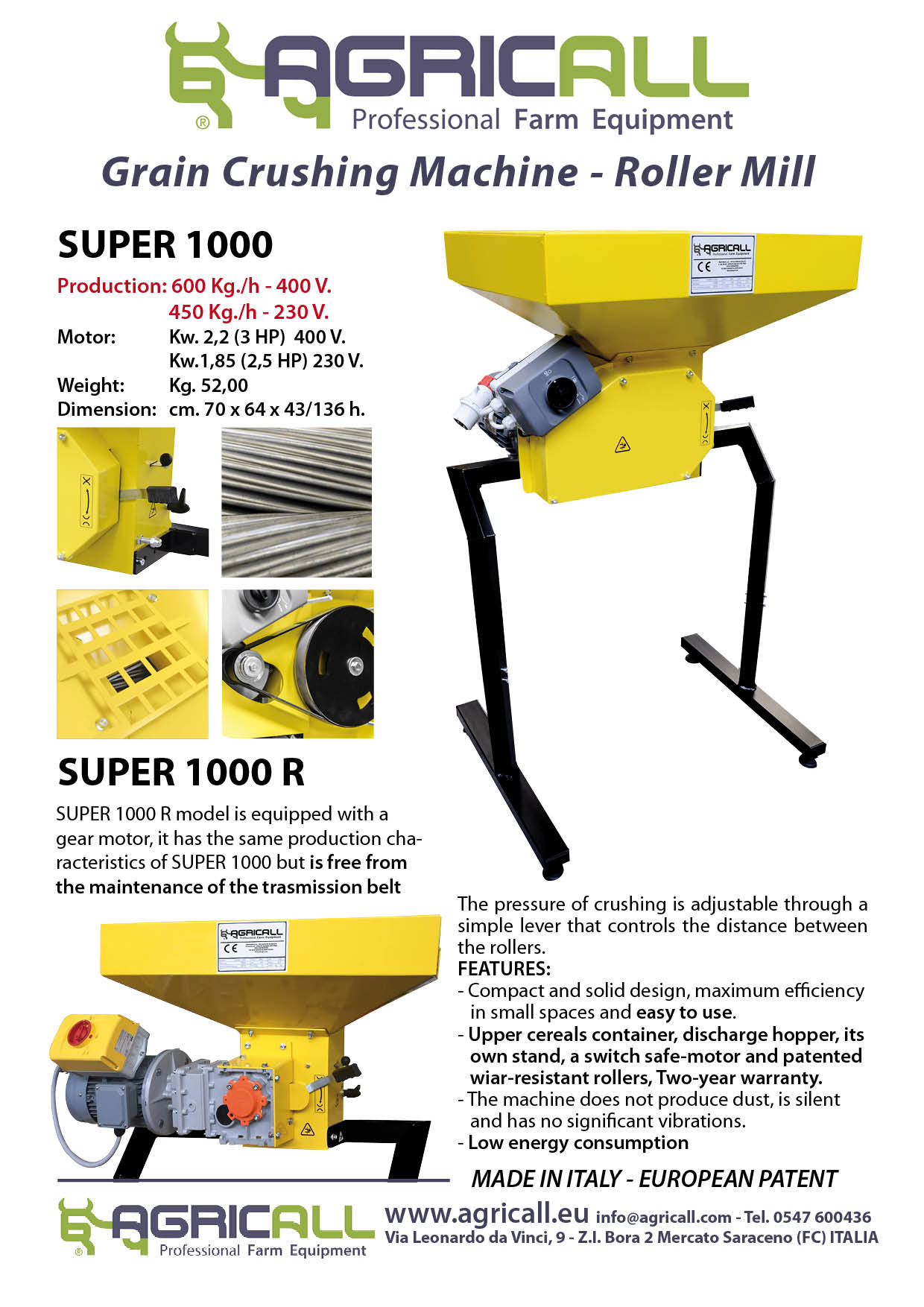

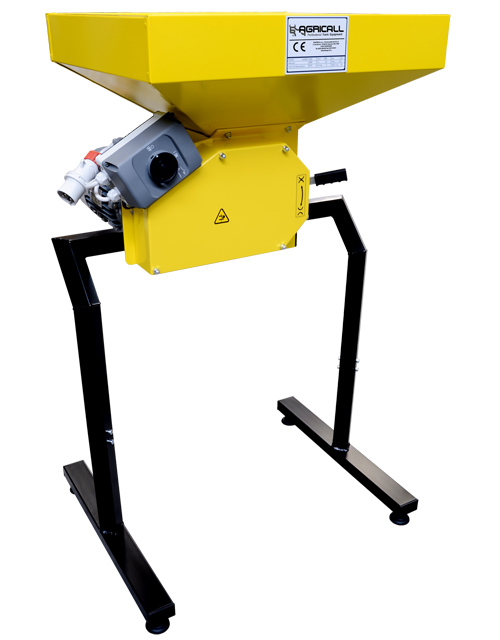

"Super 1000" Crusher
Low energy consumption, available in 2 versions: 230 V single-phase and 400 V three-phase. The single-phase model produces 4/5 quintals per hour which can increase or decrease depending on the adjustment of the crushed material, also working with mixed cereals. It can increase the average hourly production up to 6 quintals thanks to the adjustment lever and can easily manage to crush mixtures with different grain sizes in a constant manner. It does not lead to production slowdowns and the IE2 energy class motor is protected by a standard ABB motor protection. It is equipped with a solid standard support.
Production | 600,00 Kg. per hour |
---|---|
Motor | kw 2,2 (3 HP) 230/380V |
Weight | Kg. 52 |
Machine dimensions | cm. 64 x 70 x h 43 |
Overall dimensions | cm. 90 x 64 x h 136 |

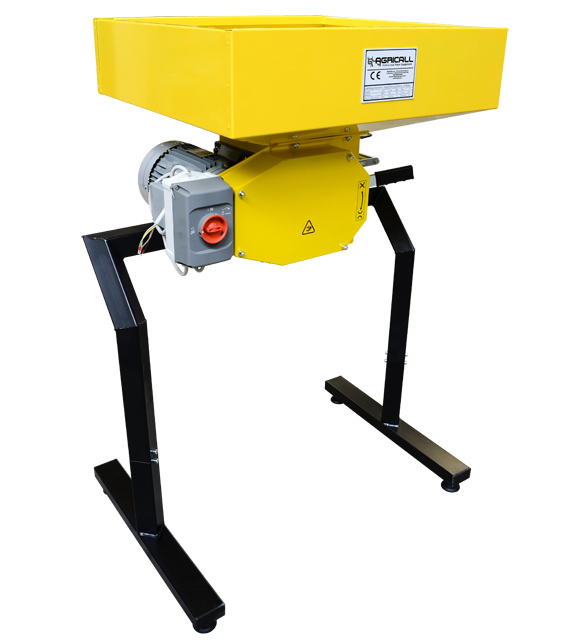

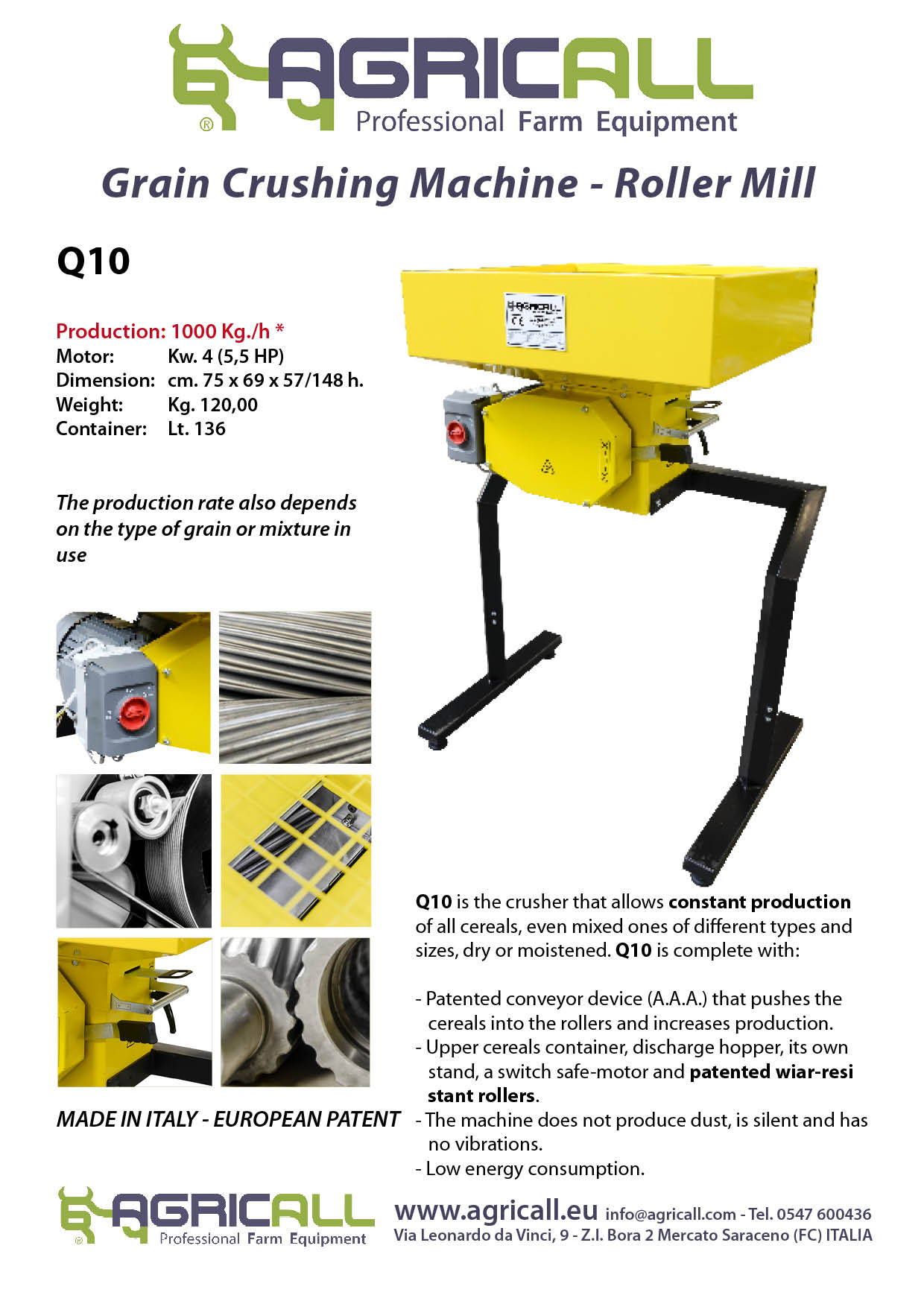

"Q10" Crusher
Low energy consumption, 400 V three-phase model. Production of 12 quintals per hour which can increase or decrease depending on the adjustment of the crushed material. This model can easily crush mixtures with different grain sizes with constant production. Contrary to competitive machines, it does not lead to production slowdowns because of larger cereals present in the mixture such as corn, field beans etc. The IE2 energy class motor is protected by a standard ABB motor protection. It is equipped with a solid standard support.
Production | 12 quintals per hour |
---|---|
Motor | kw 4 (5,5 HP) 380V |
Weight | Kg. 120 |
Machine dimensions | cm. 74,4 x 68,5 x h 148 |
Overall dimensions | cm. 100 x 68,5 x h 148 |
